CP2K¶
Description¶
CP2K is a quantum chemistry and solid state physics software package that can perform atomistic simulations of solid state, liquid, molecular, periodic, material, crystal, and biological systems. CP2K provides a general framework for different modeling methods such as DFT using the Gaussian and Plane Waves (GPW) and the all-electron GPW (GAPW) approaches.
User guide¶
For more information about the CP2K tutorials and documentation, refer to the CP2K HOWTOs.
Available Versions¶
The following versions of CP2K are currently available:
- Runtime dependencies:
- None, required libraries and dependencies are loaded automatically with the
CP2K/2022.1-foss-2022amodule.
- None, required libraries and dependencies are loaded automatically with the
You can load the CP2K module with the following command:
module load CP2K/2022.1-foss-2022a
- Runtime dependencies:
- None, required libraries and dependencies are loaded automatically with the
CP2K/2023.1-foss-2022amodule.
- None, required libraries and dependencies are loaded automatically with the
You can load the CP2K module with the following command:
module load CP2K/2023.1-foss-2022a
- Runtime dependencies:
- None, required libraries and dependencies are loaded automatically with the
CP2K/2023.1-foss-2022bmodule.
- None, required libraries and dependencies are loaded automatically with the
You can load the CP2K module with the following command:
module load CP2K/2023.1-foss-2022b
Benchmarking CP2K¶
CP2K's grid-based calculation as well as DBCSR's block sparse matrix multiplication (Cannon algorithm) prefer a square number for the total rank-count (2D communication pattern).
It can be more efficient to leave CPU cores unused in order to achieve this square number property rather than using all cores with a "non-preferred" total rank-count. Counter-intuitively, even an unbalanced rank-count per node (i.e. different rank-counts per socket) can be an advantage. Pinning MPI processes and placing threads requires extra care to be taken on a per-node basis to load a dual-socket system in a balanced fashion or to set up space between ranks for the OpenMP threads.
In order to better understand how CP2K utilises the available hardware on Devana and how to get good performance we can examine the effect on benchmark performance of the choice of the number of MPI ranks per node and OpenMP threads.
The following command has been used to run the benchmarks:
mpiexec -np $mpi_rank --map-by slot:PE=$omp_thread -x OMP_PLACES=cores -x OMP_PROC_BIND=SPREAD -x OMP_NUM_THREADS=$omp_thread cp2k.psmp -i ${benchmark}.inp > ${benchmark}.out
Working directory
Single-node benchmarks have been run on local /work/ storage native to each compute node, which is generally faster than the shared storage hosting the /home/ and /scratch/ directories.

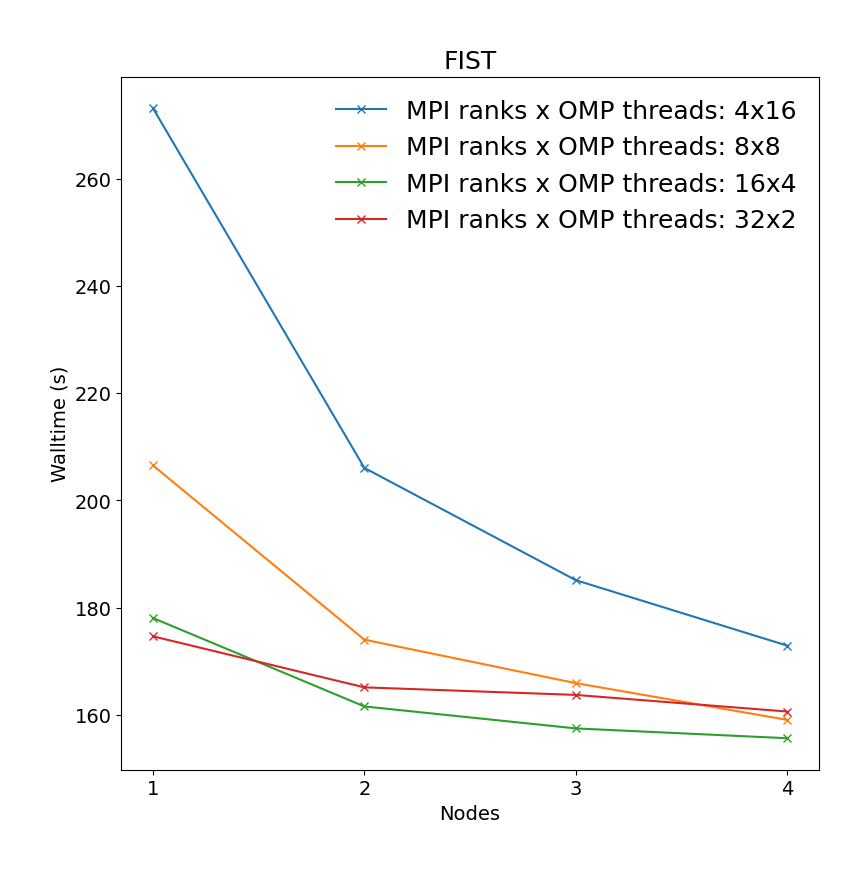

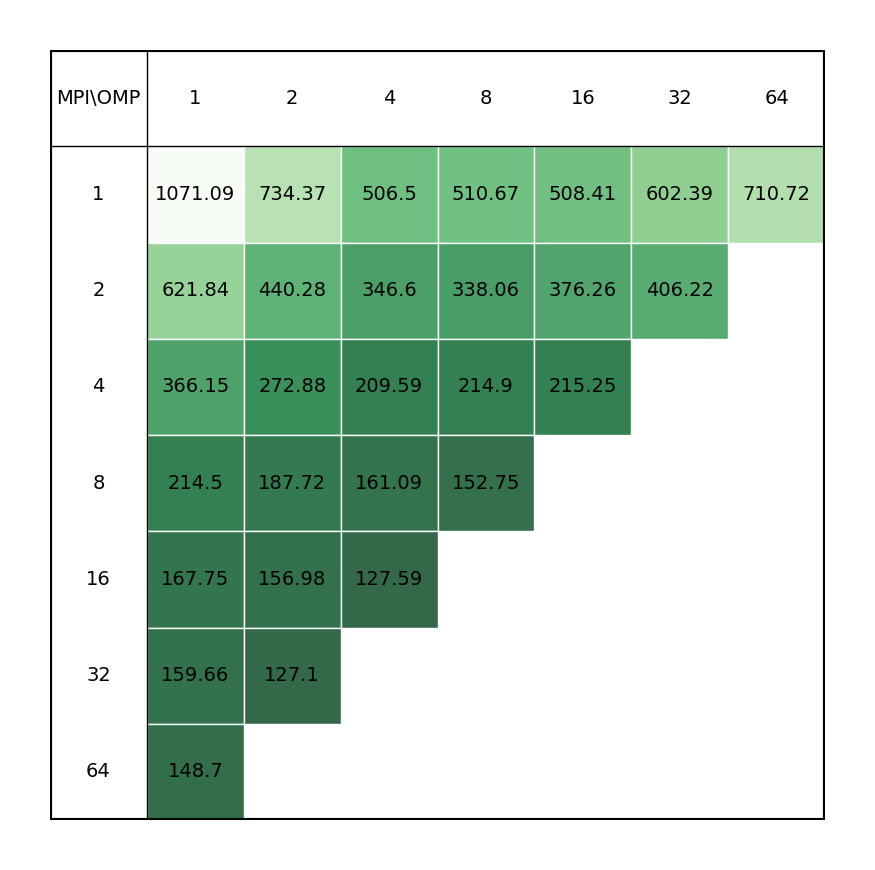

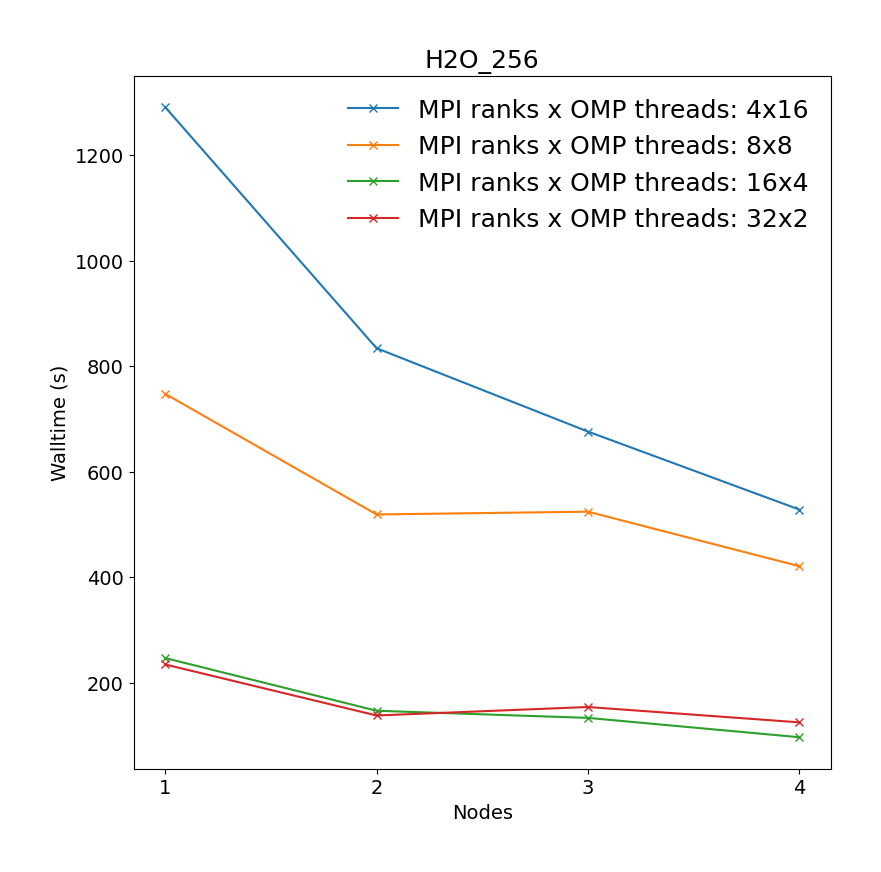

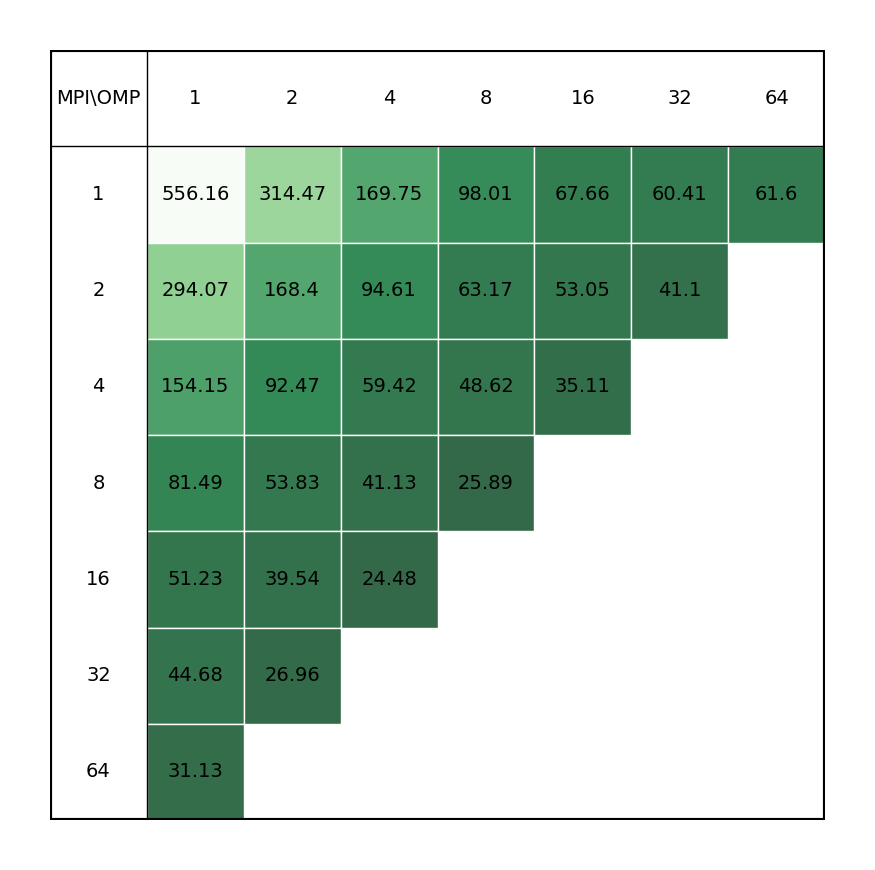

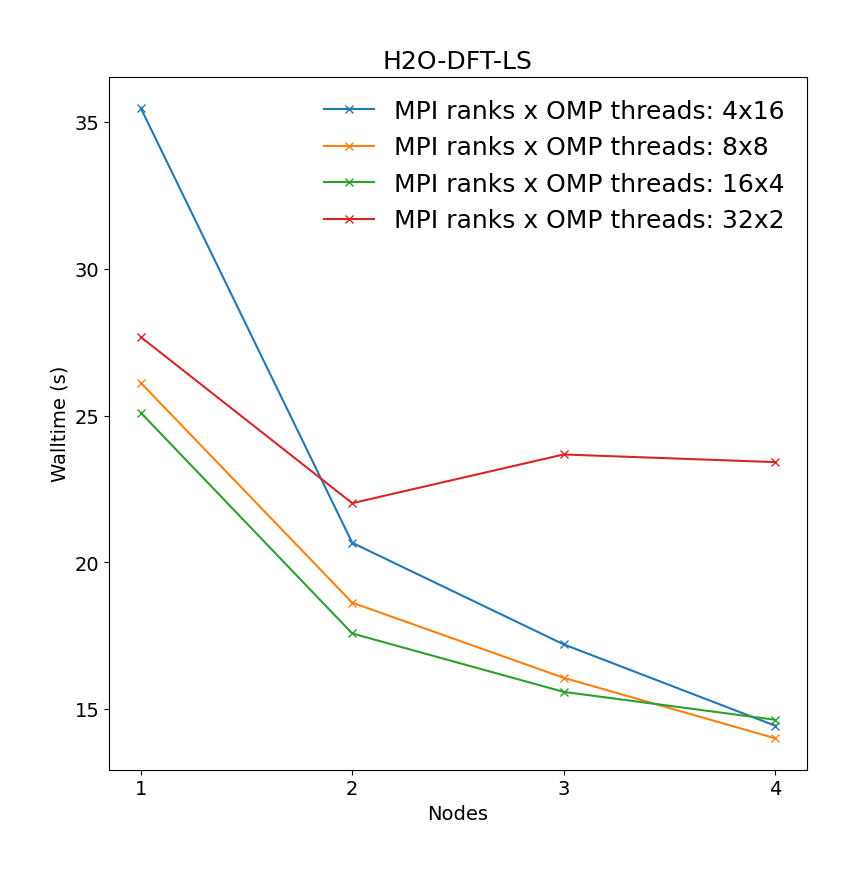

Benchmarks have been made on the following systems:

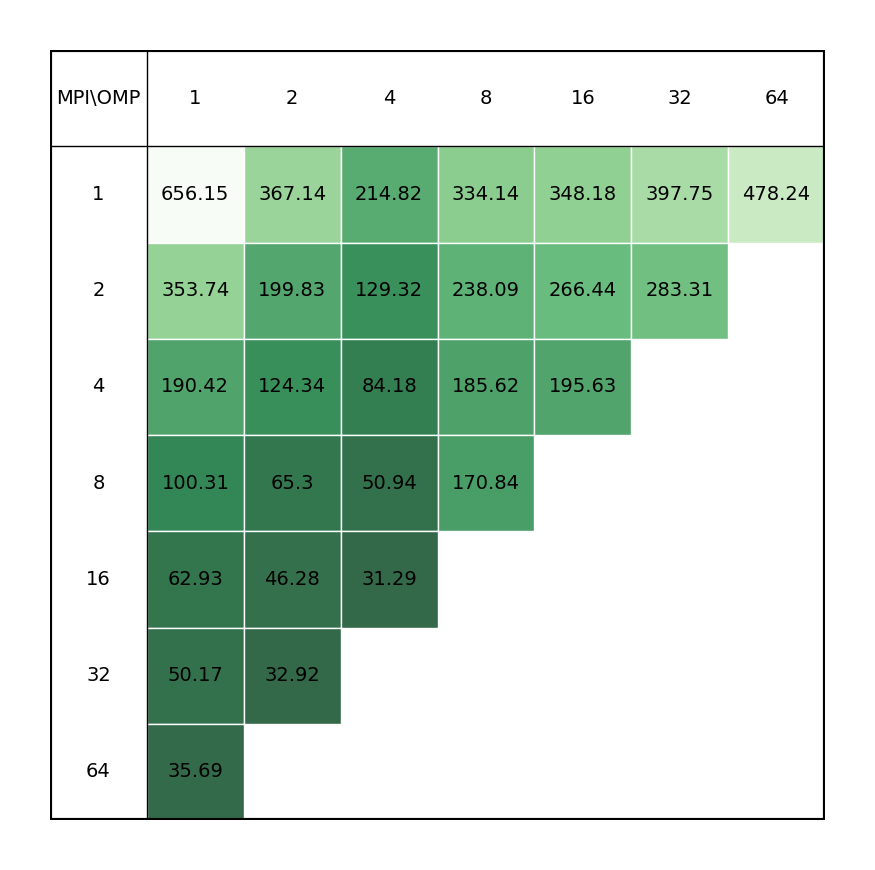

Ab-initio molecular dynamics of liquid water using the Born-Oppenheimer approach,
using Quickstep DFT. Production quality settings for the basis sets (TZV2P) and the planewave cutoff (280 Ry) are chosen, and the Local Density Approximation (LDA) is used for the calculation of the Exchange-Correlation energy. The configurations were generated by classical equilibration, and the initial guess of the electronic density is made based on Atomic Orbitals. The single-node system contains 64 water molecules (192 atoms, 640 electrons) in a 12.4 ų cell and the cross-node system contains 256 water molecules (768 atoms, 2560 electrons) in a 19.7 ų cell. Both MDs are run for 10 steps.
??? Example "H2O_64.inp"
&FORCE_EVAL
METHOD QS
&DFT
BASIS_SET_FILE_NAME GTH_BASIS_SETS
POTENTIAL_FILE_NAME POTENTIAL
&MGRID
CUTOFF 280
REL_CUTOFF 30
&END MGRID
&QS
EPS_DEFAULT 1.0E-12
WF_INTERPOLATION PS
EXTRAPOLATION_ORDER 3
&END QS
&SCF
SCF_GUESS ATOMIC
&OT ON
MINIMIZER DIIS
&END OT
&PRINT
&RESTART OFF
&END
&END
# SCF_GUESS RESTART
# EPS_SCF 1.0E-7
&END SCF
&XC
&XC_FUNCTIONAL Pade
&END XC_FUNCTIONAL
&END XC
&END DFT
&SUBSYS
&CELL
ABC 12.4138 12.4138 12.4138
&END CELL
# 64 H2O (TIP5P,1bar,300K) a = 12.4138
&COORD
O 12.235322 1.376642 10.869880
O 6.445390 3.706940 8.650794
O 0.085977 2.181322 8.276663
O 12.052554 2.671366 2.147199
O 12.250036 4.190930 12.092014
O 7.187422 0.959062 4.733469
O 8.346457 7.210040 4.667644
O 12.361546 11.527875 8.106887
O 3.299984 4.440816 9.193275
O 2.855829 3.759909 6.552815
O 1.392494 6.362753 0.586172
O 1.858645 8.694013 2.068738
O 3.770231 12.094519 8.652183
O 6.432508 3.669828 2.772418
O 1.998724 1.820217 4.876440
O 8.248581 2.404730 6.931303
O 5.753814 3.360029 12.461534
O 11.322212 5.649239 2.236798
O 4.277318 2.113956 10.590808
O 5.405015 3.349247 5.484702
O 6.493278 11.869958 0.684912
O 3.275250 2.346576 2.425241
O 7.981003 6.352512 7.507970
O 5.985990 6.512854 12.194648
O 10.636714 11.856872 12.209540
O 9.312283 3.670384 3.508594
O 1.106885 5.830301 6.638695
O 8.008007 3.326363 10.869818
O 12.403000 9.687405 11.761901
O 4.219782 7.085315 8.153470
O 3.781557 8.203821 11.563272
O 11.088898 4.532081 7.809475
O 10.387548 8.408890 1.017882
O 1.979016 6.418091 10.374159
O 4.660547 0.549666 5.617403
O 8.745880 12.256257 8.089383
O 2.662041 10.489890 0.092980
O 7.241661 10.471815 4.226946
O 2.276827 0.276647 10.810417
O 8.887733 0.946877 1.333885
O 1.943554 8.088552 7.567650
O 9.667942 8.056759 9.868847
O 10.905491 8.339638 6.484782
O 3.507733 4.862402 1.557439
O 8.010457 8.642846 12.055969
O 8.374446 10.035932 6.690309
O 5.635247 6.076875 5.563993
O 11.728434 1.601906 5.079475
O 9.771134 9.814114 3.548703
O 3.944355 10.563450 4.687536
O 0.890357 6.382287 4.065806
O 6.862447 6.425182 2.488202
O 3.813963 6.595122 3.762649
O 6.562448 8.295463 8.807182
O 9.809455 0.143325 3.886553
O 4.117074 11.661225 2.221679
O 5.295317 8.735561 2.763183
O 9.971999 5.379339 5.340378
O 12.254708 8.643874 3.957116
O 2.344274 10.761274 6.829162
O 7.013416 0.643488 10.518797
O 5.152349 10.233624 10.359388
O 11.184278 5.884064 10.298279
O 12.252335 8.974142 9.070831
H 12.415139 2.233125 11.257611
H 11.922476 1.573799 9.986994
H 5.608192 3.371543 8.971482
H 6.731226 3.060851 8.004962
H -0.169205 1.565594 7.589645
H -0.455440 2.954771 8.118939
H 12.125168 2.826463 1.205443
H 12.888828 2.969761 2.504745
H 11.553255 4.386613 11.465566
H 12.818281 4.960808 12.067151
H 7.049495 1.772344 4.247898
H 6.353019 0.798145 5.174047
H 7.781850 7.384852 5.420566
H 9.103203 6.754017 5.035898
H 12.771232 11.788645 8.931744
H 12.018035 10.650652 8.276334
H 3.557245 3.792529 9.848846
H 2.543844 4.884102 9.577958
H 2.320235 4.521250 6.329813
H 2.872128 3.749963 7.509824
H 1.209685 7.121391 1.140501
H 2.238885 6.038801 0.894245
H 2.763109 8.856353 2.336735
H 1.329379 9.047369 2.783755
H 4.315639 11.533388 9.203449
H 3.098742 12.433043 9.244412
H 5.987369 3.448974 3.590530
H 5.813096 3.419344 2.086985
H 1.057126 1.675344 4.969379
H 2.248496 2.292119 5.670892
H 8.508264 1.653337 7.464411
H 8.066015 2.034597 6.067646
H 5.197835 2.915542 11.821572
H 6.630900 3.329981 12.079371
H 10.788986 6.436672 2.127933
H 11.657923 5.463602 1.359832
H 3.544476 1.634958 10.977765
H 4.755770 1.455054 10.087655
H 4.465371 3.375459 5.665294
H 5.682663 4.264430 5.524498
H 6.174815 11.778676 1.582954
H 5.713640 12.089924 0.174999
H 3.476076 1.498708 2.028983
H 2.730229 2.134295 3.182949
H 7.119624 5.936450 7.474030
H 8.536492 5.799405 6.958665
H 5.909499 5.717477 11.667621
H 6.125402 6.196758 13.087330
H 11.203499 12.513536 11.804844
H 10.260930 12.300153 12.970145
H 9.985036 3.927685 2.878172
H 8.545584 3.468329 2.972331
H 1.399882 6.620092 7.093246
H 0.963561 6.112523 5.735345
H 8.067363 3.674002 9.979955
H 8.000737 2.375959 10.756190
H 11.821629 10.402510 12.020482
H 12.206854 8.983242 12.379892
H 3.461473 7.606485 7.889688
H 3.844478 6.304711 8.560946
H 3.179884 7.585614 11.148494
H 4.401957 7.652030 12.039573
H 11.573777 5.053211 7.169515
H 10.342076 4.186083 7.320831
H 10.065640 8.919194 1.760981
H 9.629585 8.322499 0.439729
H 1.396302 6.546079 9.625630
H 1.405516 6.479759 11.138049
H 4.024008 1.232518 5.405828
H 4.736858 0.579881 6.571077
H 9.452293 12.313381 8.732772
H 8.976559 11.502788 7.545965
H 1.834701 10.012311 0.153462
H 3.295197 9.836403 -0.204175
H 7.056724 11.401702 4.095264
H 6.499038 10.020287 3.825865
H 1.365541 0.487338 11.013887
H 2.501591 -0.428131 11.417871
H 8.644279 1.812362 1.005409
H 8.142674 0.388030 1.112955
H 1.272659 8.365063 8.191888
H 2.142485 8.877768 7.063867
H 8.961493 7.826192 9.265523
H 9.227102 8.487654 10.601118
H 10.150144 7.758934 6.392768
H 10.596082 9.187988 6.167290
H 3.463106 4.096188 2.129414
H 3.919461 4.539801 0.755791
H 7.418998 9.394959 12.028876
H 7.430413 7.883095 12.106546
H 7.972905 10.220334 5.841196
H 7.675111 9.631498 7.203725
H 5.332446 6.381336 6.419473
H 5.000025 6.434186 4.943466
H 11.575078 2.271167 4.412540
H 11.219802 0.847030 4.783357
H 8.865342 9.721516 3.843998
H 10.000732 10.719285 3.758898
H 3.186196 10.476397 5.265333
H 4.407331 11.335128 5.013723
H 0.558187 7.255936 3.859331
H 0.341672 5.789383 3.552346
H 7.459933 6.526049 3.229193
H 6.696228 5.483739 2.440372
H 3.864872 6.313007 2.849385
H 2.876419 6.621201 3.953862
H 5.631529 8.079145 8.753997
H 7.003296 7.568245 8.367822
H 9.615413 0.527902 3.031755
H 8.962985 0.109366 4.332162
H 3.825854 11.139182 1.474087
H 4.063988 11.063232 2.967211
H 5.784391 7.914558 2.708486
H 4.780461 8.655167 3.566110
H 10.880659 5.444664 5.046607
H 9.593331 4.687991 4.797350
H 11.562317 8.960134 3.376765
H 11.926084 8.816948 4.839320
H 2.856874 11.297981 7.433660
H 1.492332 11.195517 6.786033
H 7.145820 0.090200 9.749009
H 7.227275 0.077690 11.260665
H 4.662021 9.538430 10.798155
H 5.994537 9.833472 10.142985
H 10.544299 6.595857 10.301445
H 11.281750 5.653082 9.374494
H 12.103020 8.841164 10.006916
H 11.491592 8.576221 8.647557
&END COORD
&KIND H
BASIS_SET TZV2P-GTH
POTENTIAL GTH-PADE-q1
&END KIND
&KIND O
BASIS_SET TZV2P-GTH
POTENTIAL GTH-PADE-q6
&END KIND
&END SUBSYS
&END FORCE_EVAL
&GLOBAL
PROJECT H2O-64
RUN_TYPE MD
PRINT_LEVEL LOW
EPS_CHECK_DIAG 1.0E-12
&END GLOBAL
&MOTION
&MD
ENSEMBLE NVE
STEPS 10
TIMESTEP 0.5
TEMPERATURE 300.0
&END MD
&END MOTION
??? Example "H2O_256.inp"
